DB Electrical TRM0012 Tilt Trim Motor Compatible with/Replacement for Chrysler/Force/Evinrude/Johnson Omc 75 HP, 90 HP, 115 HP, 120 HP, 130 HP, 135 HP, 172543, 382715, ESZ4009, ESZ4012
Product details
| Management number | 228712148 | Release Date | 2026/05/31 | List Price | US$87.87 | Model Number | 228712148 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
**Verify the part fits before purchasing**Specs:Unit Type: Tilt & Trim MotorVoltage: 12Rotation: REDimension: Replacement Unit:, OD: 3.031in / 77mm, Shaft OD: 0.291in / 7.4mm, Length: 8.661in / 220mm, Shaft: 3.5mm Drive Tang, Note: Includes Reservoir, Note: 3-Wire Configuration, Brief: Chrysler, Force, Evinrude, JohnsonReplaces OEM Numbers:API MARINE: PT112, PT112NARCO MARINE: 6216ARROWHEAD: TRM0012CHRYSLER MARINE: 44-9541-1, 45-5541, F17563EMP UnitS: 4-6762Force: F17556, F17563, F17564, F17568, F654541, FK654541J & N: 430-20024LESTER: 10806OMC: 0172543, 0382715, 172543, 382715PRESTOLITE: ESZ4009, ESZ4012, ESZ4014, ETX4001QUICKSILVER: 8M6007521SIERRA MARINE: 18-6762WAI: 10806NCompatible With/Replacement For:CHRYSLER MARINE 100 1979-1984, 105 1982-1984, 115 1977-1984, 125 1981-1984, 140 1979-1984, 75 1979-1984, 85 1977-1984, 90 1983-1984EVINRUDE E100 1972-1972, E115 1973-1977, E125 1972-1972, E135 1973-1976, E65 1973-1973, E70 1974-1977, E75 1975-1977, E85 1972-1972, E85 1973-1977FORCE 1008 1984-1984, 1158 1984-1984, 1251 1983-1987, 1253 1986-1987, 1254 1986-1987, 1258 1983-1987, 1401 1984-1984, 601 1985-1985, 601 1989-1989, 606 1984-1984, 608 1984-1985, 758 1984-1984, 856 1983-1987, 857 1986-1986, 858 1983-1987, 906 1984-1984, 908 1984-1984U.S. All Models All
- Specs: Tilt & Trim Motor, Voltage: 12, Rotation: RE, Dimension: Replacement Unit:, OD: 3.031in / 77mm, Shaft OD: 0.291in / 7.4mm, Length: 8.661in / 220mm, Shaft: 3.5mm Drive Tang, Note: Includes Reservoir, Note: 3-Wire Configuration, Brief: Chrysler, Force, Evinrude, Johnson
- Replaces OEM Numbers: API MARINE: PT112, PT112N, ARCO MARINE: 6216, ARROWHEAD: TRM0012, CHRYSLER MARINE: 44-9541-1, 45-5541, F17563, EMP UnitS: 4-6762, Force: F17556, F17563, F17564, F17568, F654541, FK654541, J & N: 430-20024, LESTER: 10806, OMC: 0172543, 0382715, 172543, 382715, PRESTOLITE: ESZ4009, ESZ4012, ESZ4014, ETX4001, QUICKSILVER: 8M6007521, SIERRA MARINE: 18-6762, WAI: 10806N
- Compatible With/Replacement For: CHRYSLER MARINE 100 1979-1984, 105 1982-1984, 115 1977-1984, 125 1981-1984, 140 1979-1984, 75 1979-1984, 85 1977-1984, 90 1983-1984, EVINRUDE E100 1972-1972, E115 1973-1977, E125 1972-1972, E135 1973-1976, E65 1973-1973, E70 1974-1977, E75 1975-1977, E85 1972-1972, E85 1973-1977, FORCE 1008 1984-1984, 1158 1984-1984, 1251 1983-1987, 1253 1986-1987, 1254 1986-1987, 1258 1983-1987, 1401 1984-1984, 601 1985-1985
- 1-year warranty protects you after your purchase. We're confident that our products will work flawlessly once installed in your vehicle. But in a rare case that it does not, we'll replace it anytime within one year of your order. If you have a problem, we will take every step to assist you, contact us for a replacement.

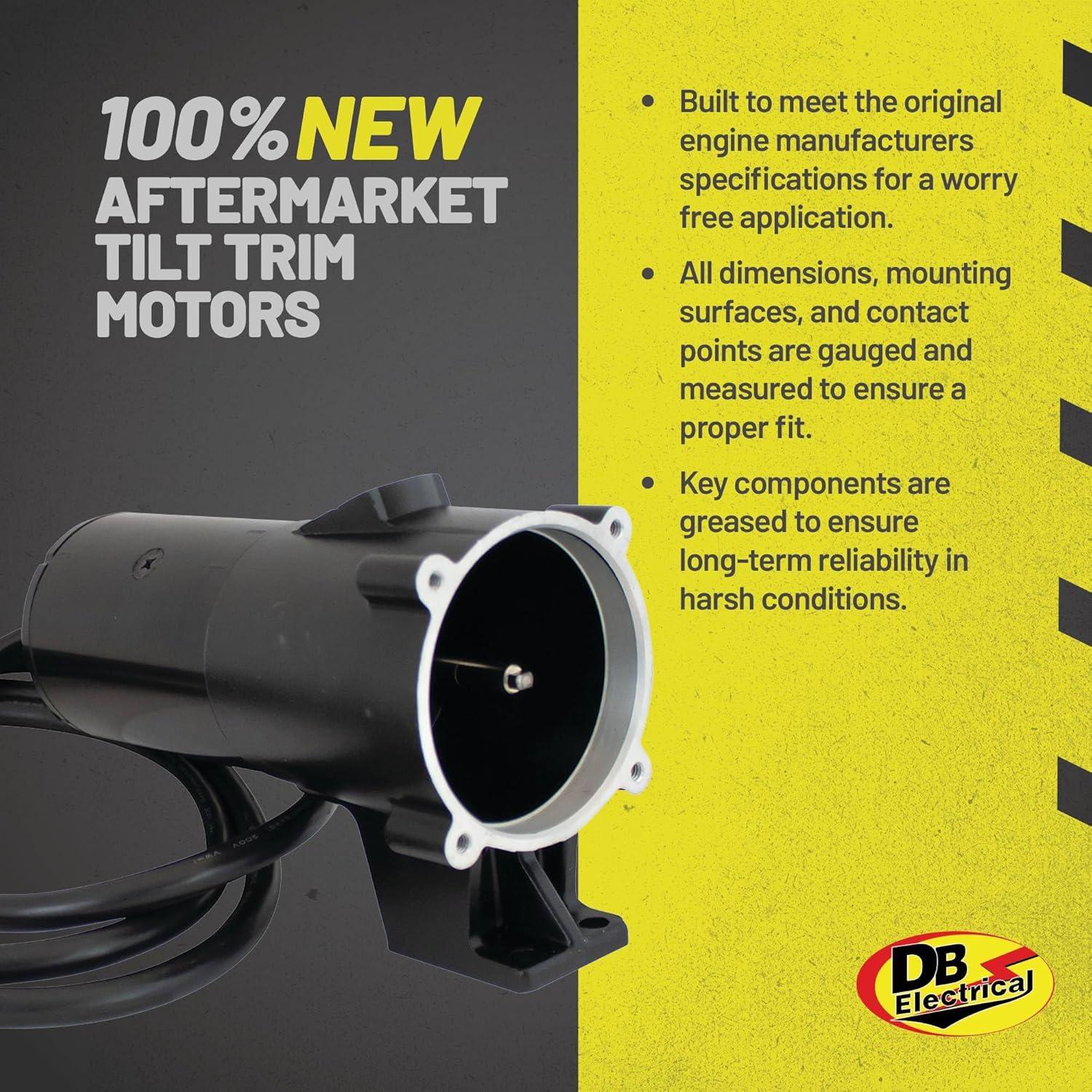

- 100% New Aftermarket Tilt & Trim Motor built to meet OEM specifications
| UPC | 701485537684 |
|---|---|
| ASIN | B019GUJUMS |
| Model | 430-20024 |
| Speed | 5500 RPM |
| Voltage | 12 Volts |
| Brand Name | DB Electrical |
| Horsepower | 90 Horsepower |
| Model Name | DB Electrical-430-20024 |
| Item Weight | 6.5 Pounds |
| Part Number | 430-20024 |
| Manufacturer | DB Electrical |
| Included Components | Tilt Trim Motor |
| Warranty Description | 1-Year Warranty |
| Global Trade Identification Number | 00701485537684 |
